WEKIS Hidden Cabinet Folding Door Hardware Kit, Soft Close Pocket System for Kitchen Tall Appliance Cabinet Doors

WEKIS Hidden Cabinet Folding Door Hardware Kit, Soft Close Pocket System for Kitchen Tall Appliance Cabinet Doors

Model: AA200193

Item specifics

Material: Steel

Finishing: Satin Black

Qty/ctn: 1 set

Carton size: L: 204 W: 22 H: 8.5

Remark: Remark

CBM/ctn: 0.038

Review

Description

Product Detailed Parameters

Item no	AA200193
Finishing	Satin Black
Remark	one-piece rail packed
Material	Steel

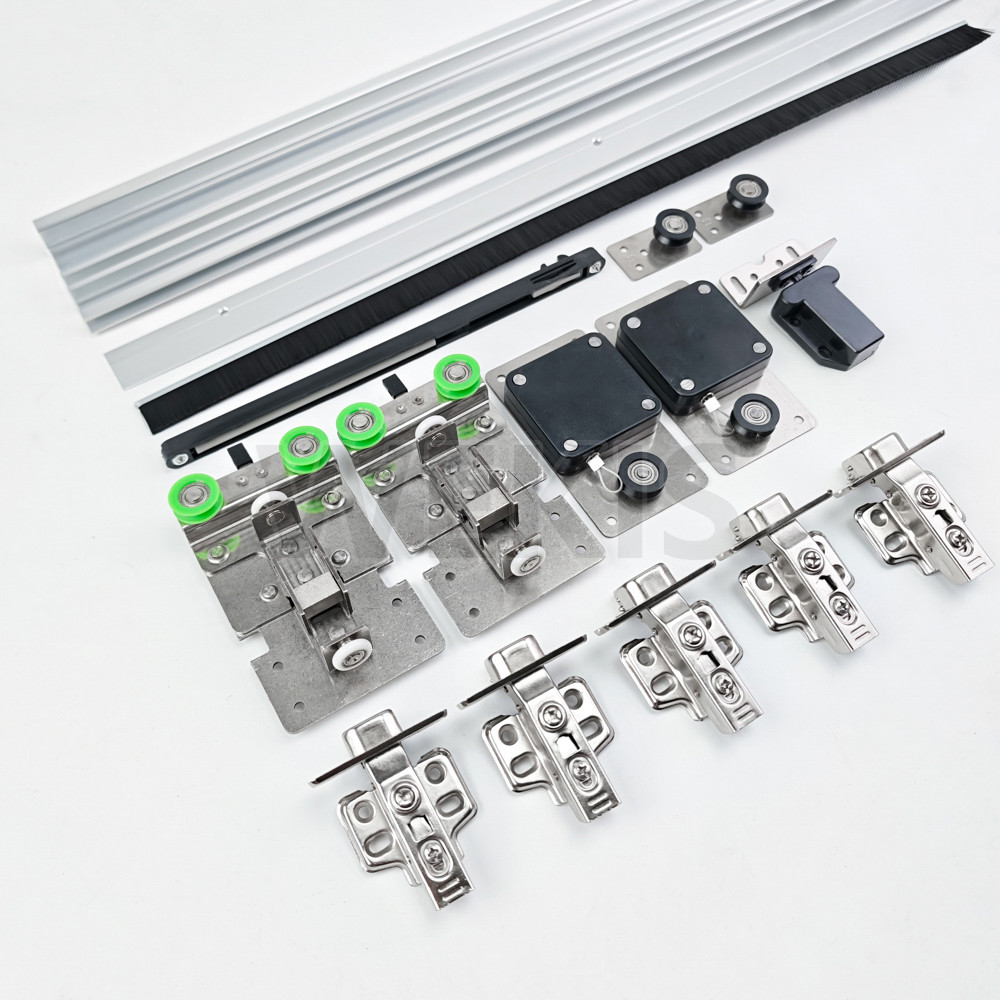

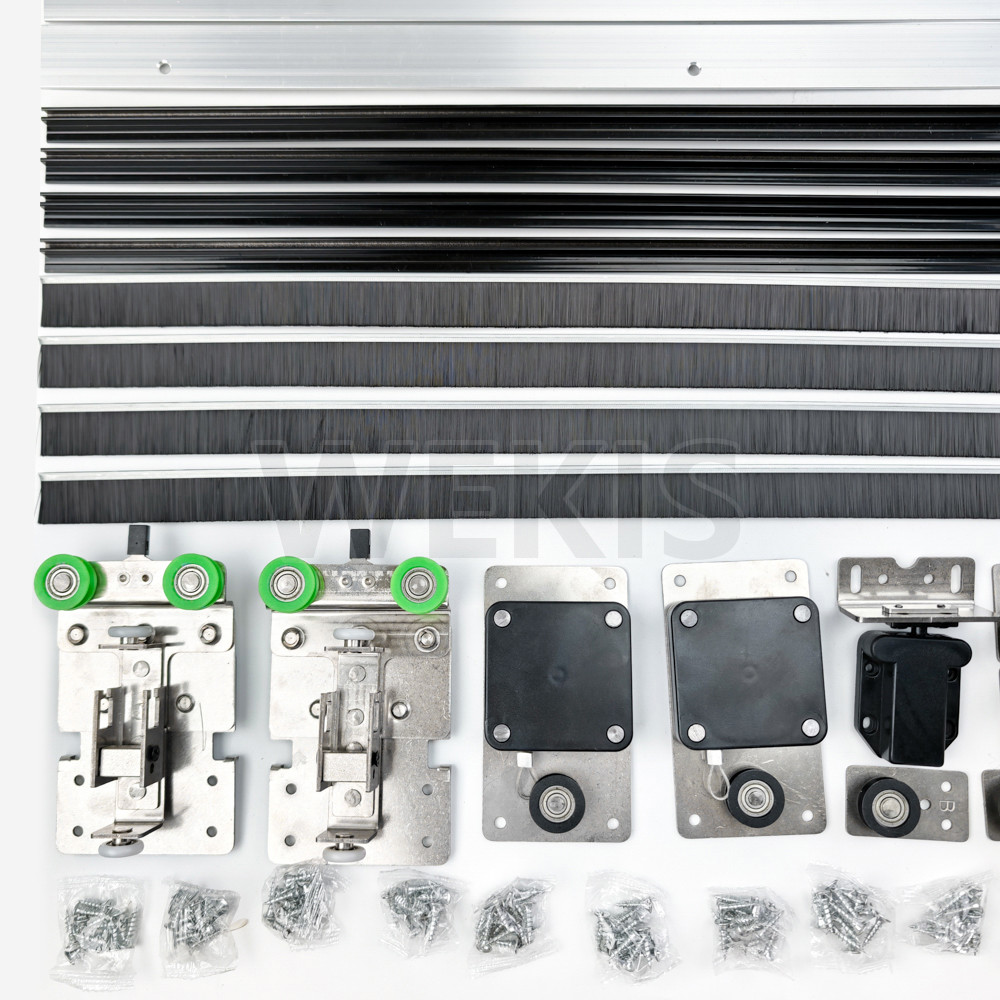

Description	Aluminum sliding track bars (long silver tracks) – 8 pcs Dustproof brush sealing strips (black brush strips) – 8 pcs Green wheel sliding rollers (front door trolleys) – 2 sets (4 rollers total) Upper hanging roller brackets (top cabinet hangers) – 4 pcs Black square bottom limit blocks – 2 pcs Small round bottom stoppers – 3 pcs Middle connecting hinge brackets – 1 pc Side hinge mounting brackets – 4 pcs Soft close buffer damper – 1 pc Screw & fixing accessory bag (screws, washers, connectors) – 1 pack
MOQ(pcs)	Negotiable

Product Introduction

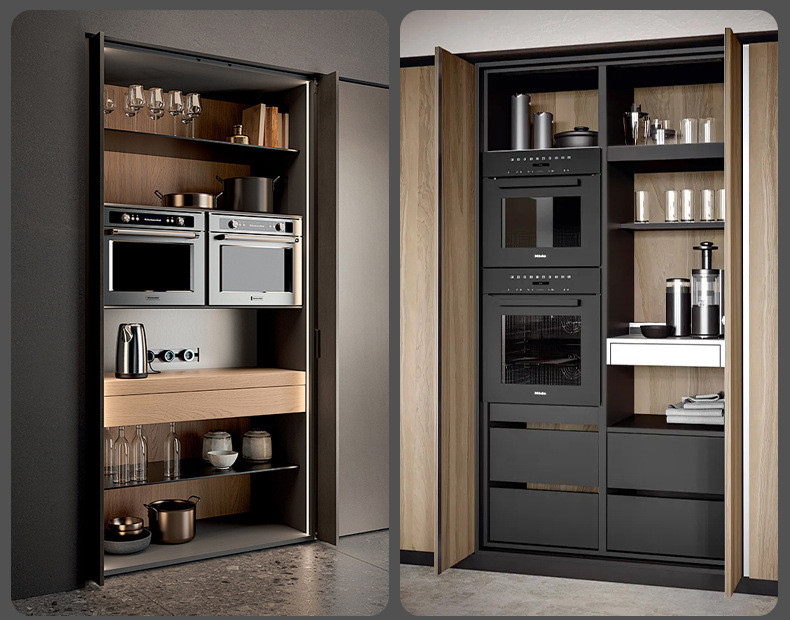

This WEKIS hidden folding cabinet door hardware kit is a complete all-in-one sliding track system specially customized for tall kitchen appliance cabinets, pantry cabinets and built-in oven storage cabinets. It enables cabinet doors to fully fold and hide inside the cabinet body without occupying extra external space, presenting a seamless minimalist kitchen visual effect. Every matching accessory is included in the package, supporting direct DIY installation without purchasing extra fittings separately.

WEKIS Hidden Cabinet Folding Door Hardware Kit

Features

Fully Concealed Folding Design

After installation, the cabinet door can be completely folded and hidden into the cabinet interior. No outward protruding doors, which greatly optimizes the kitchen walking space and fits modern minimalist, light luxury and industrial kitchen styles perfectly.

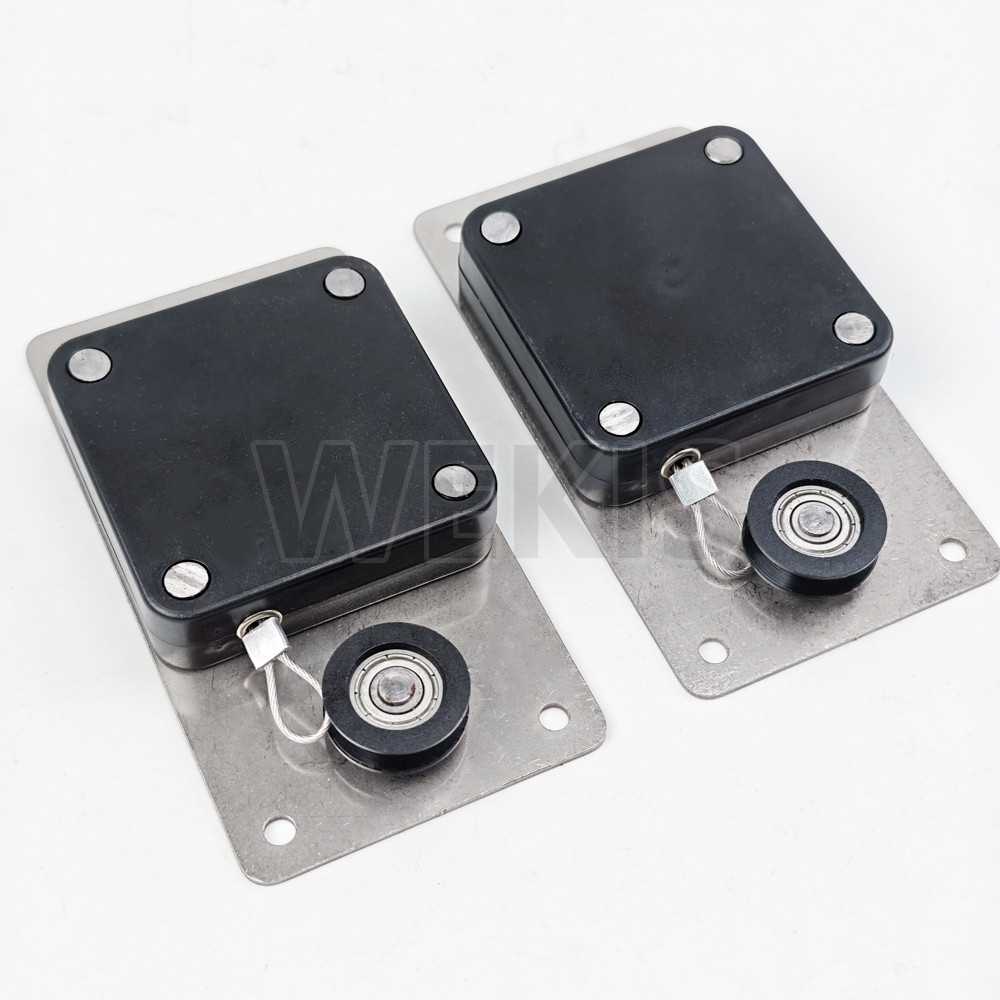

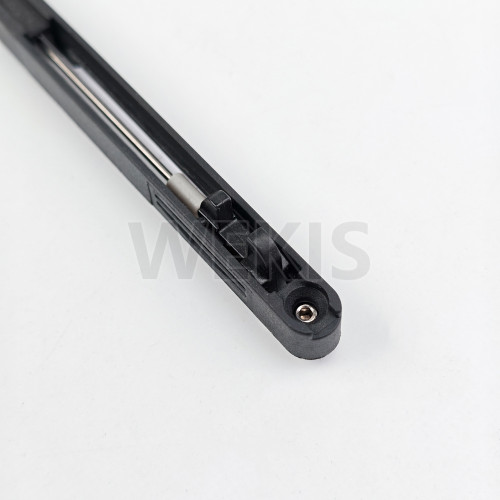

Soft Close Silent Buffer System

Equipped with independent soft close damper, the cabinet door will slow down automatically before closing, effectively avoiding loud impact noise, protecting cabinet panels and extending service life.

Dustproof & Noise Reduction Brush Strips

Supporting matched black brush sealing strips are equipped along the track, which can block kitchen dust, oil fume and debris from entering the track, keeping the sliding system smooth long-term while weakening sliding friction noise.

Sturdy Aluminum Track Structure

The main sliding tracks adopt thickened aluminum alloy material, anti-rust and anti-deformation, bearing capacity meets the weight demand of tall cabinet wooden doors, stable sliding without shaking during long-term use.

Full Set Accessories, Easy DIY Installation

All necessary tracks, rollers, hinges, stoppers and screws are integrated in one kit. No extra accessories need to be purchased. Clear assembly logic allows users to finish installation without professional carpentry skills.

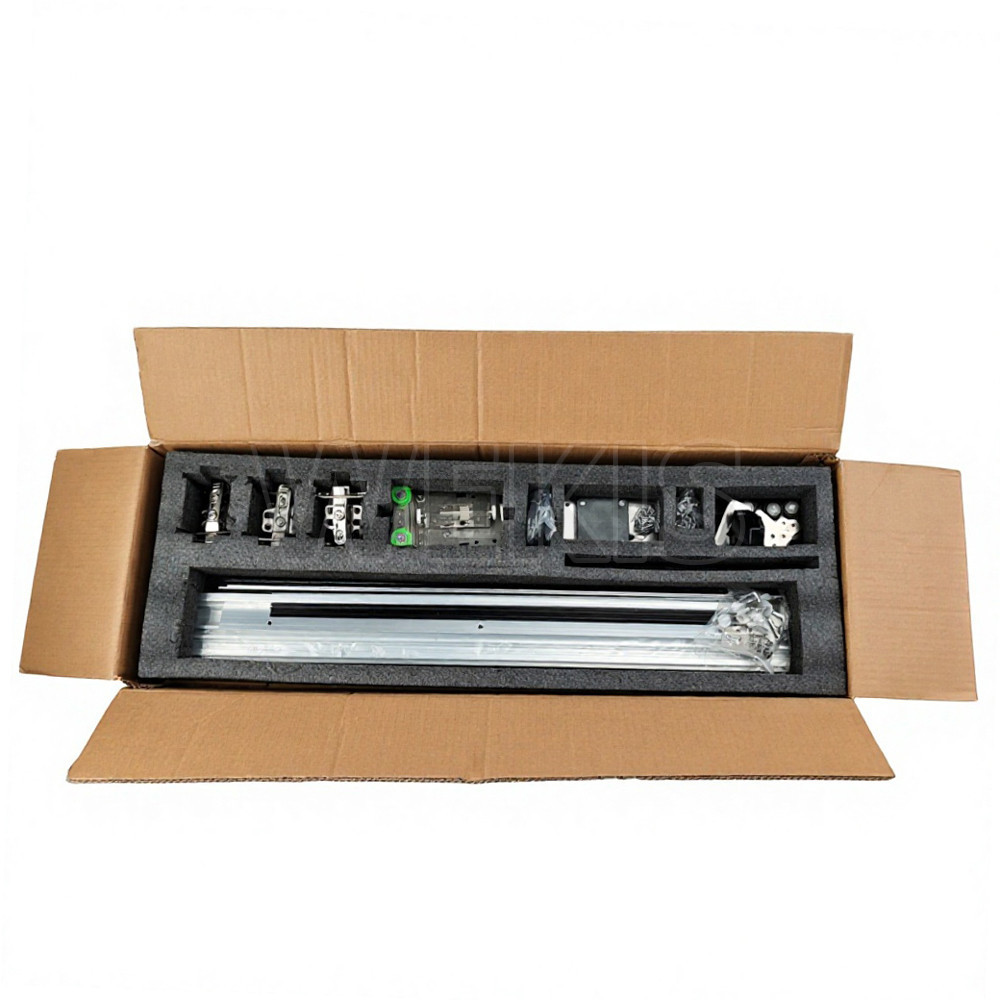

Package

Installation of Double Bifold Barn Door Hardware Kit

Step 1

Rail installation

Note:

*Do not mount the rail spacers directly onto drywall.

*Solid wooden headerboard is required for following cases:

-the holes on the rail do not line up with studs.

-the openning has thick frame/baseboard (the gap between

door & wall only has 1/4”~3/8").

1. Location of center of the rail=

height of the door+115/16".

2. Using a level,lightly score a level pencil line on the wall/headerboard where the center of the rail spacers will be fastened into,mark a line.

3. Drill fastener holes on the wall/(headerboard).

4. Mount the rail using the supplied lag screws,

washers and rail spacers.

Step 2

Installating the hardware on the doors

(Fit door thickness: 1"-1-5/8" )

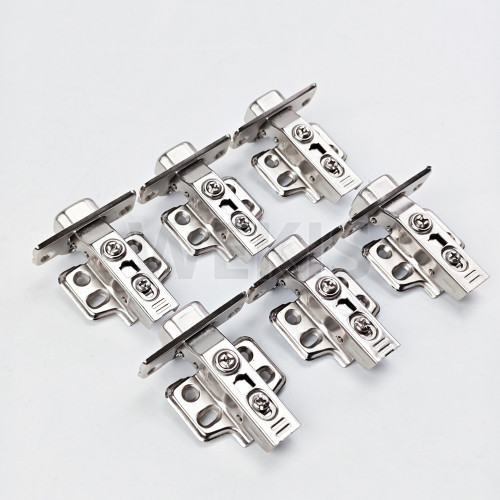

1.Installing 3 hinges on the back of the doors.

2.Installing top connector plate onto the door.

*Aligns the top connector plate with the edge of the door.

Mark the screw holes on the top of the door and drill holes.

Tight the screws to get plates installed.

3. Installing the brass sleeve on the bottom of the door

*Drill a hole on the bottom of the door,

measure 13/8" from the bottom edge of the door and 3/4" from the front of the door.

*Using a 5/8" spade bit of forstner bit,drill a 7/8" deep hole and insert the brass sleeve.

Step 3

Hanging the doors on the rail

In order to determine the proper location for the bottom pivot plate,the doors must first be hung on the rail at the desired position in reference to the openning.

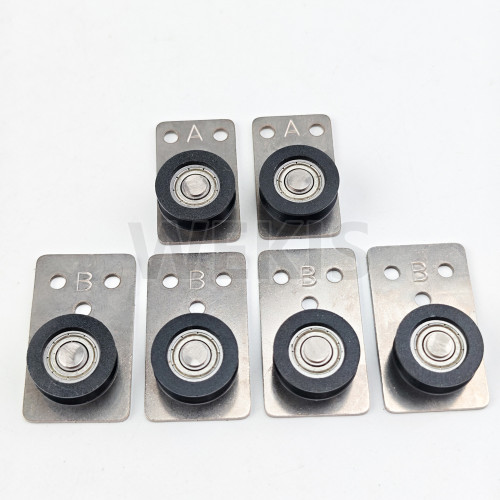

1. Pull forward to engage the top connector plate on the top of the door with the fixed roller and the adjustable roller.

*Be sure the set screw on the side of each roller is backed out so that it does not protrude into the slot openning

2. Lift the doors up and hang on the track.

3. Close the door and let the door cover the openning to find the best location for fixed roller.

4. Lock the fixed roller onto the rail by set hardware.

Step 4

Installing the bottom pivot plate

The location of this bottom pivot plate is critical for proper function of the bifold barn door.

1. Pull out the bottom of the door slightly and insert the bottom pivot plate into the brass sleeve located in the bottom of the fixed position door,reposition the door.

2. Using a level,plumb the door and mark the position of the bottom pivot plate on the floor(from edge and outside edge).

3. Put the bottom pivot plate on the marks and drill holes,secure the floor using the supplied screws.

4. Take the doors off the rail by removing the set screw on the fixed roller,insert the bottom pivot plate into the brass Sleeve,then re-hang the doors on the rail.
