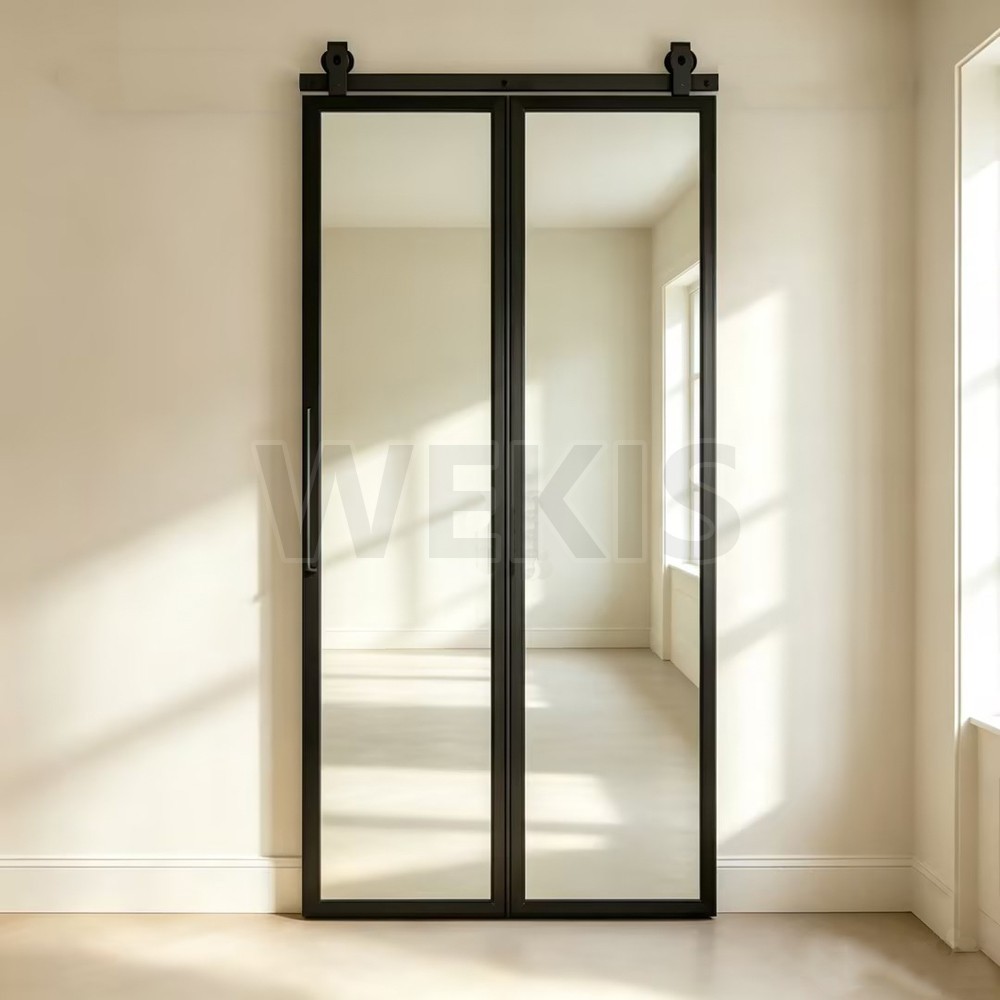

Mirror Bifold Barn Door with Black Aluminium Frame 914x2134mm
- Model
- 201701
Item specifics
- Model
- 201701
- Door Type
- Bifold Barn Door, Two Hinged Mirror Leaves
- Door Size
- 914 x 2134 mm
- Leaf Width
- 457 mm Per Leaf
- Door Thickness
- 30 mm
- Track Length
- 1016 mm
- Mirror Thickness
- 3 mm
- Frame Material
- Aluminium
- Colour
- Black
- Included
- Mirror Leaves, Frame, Track, Hangers, Handle, Floor Guide
- Customization
- OEM / ODM on Size, Finish and Panel Division
- Place of Origin
- Guangdong, China
Review
Description
Model 201701 is a full-length mirror bifold barn door supplied as a complete unit: two hinged mirror leaves in a black aluminium frame, the top-mounted barn door track, hangers, pull handle and floor guide. The pair folds back on a 1016 mm rail instead of sweeping into the room, so it suits openings where a swing door would collide with fixtures. The finished door measures 914 x 2134 mm and is 30 mm thick. Each leaf is 457 mm wide, so the two panels fold to roughly half the closed width and stack clear of the doorway. The fold action changes what the door can do in a tight floor plan. A sliding barn door needs clear wall beside the opening equal to its own width. This bifold folds instead, so the rail stays close to the opening. The closed pair reads as one continuous full-length mirror, which removes the need for a separate dressing mirror on an adjacent wall. Hangers carry the load on the top rail while a floor guide holds the leading stile on line, controlling sway across a 2134 mm height. An aluminium frame carries 3 mm mirror at 2134 mm height without the seasonal movement that opens joints in a timber stile. Confirmed production figures for model 201701. Track length exceeds door width by design. The 1016 mm rail gives the hangers travel beyond the 914 mm door so the folded pair clears the opening. Elevation, section and folded position for model 201701. Wheel hangers bolt through the top rail of the frame and run on a flat black rail. The rail is drilled for wall or header fixing at set centres. A low-profile floor guide keeps the base of the leading leaf on its running line and stops the panel swinging away from the wall. A square-section bar handle is fitted to the leading stile, finished to match the black frame so the door reads as one piece. The two leaves meet at a hinged centre stile. Closed, the joint is a narrow black line; open, it is the pivot the pair folds around. Folds clear where a swing door would foul a vanity or shower screen, and supplies the room mirror at the same time. Gives a full-length dressing mirror on the closet entry, then folds back to leave the opening almost completely clear. Used as a room divider where the mirror face visually doubles a narrow space and the fold action saves floor area. Far less than a sliding barn door. Because the leaves fold to roughly 457 mm rather than sliding the full 914 mm sideways, the 1016 mm rail sits close to the opening instead of spanning double the door width. Yes. The door ships as finished leaves with 3 mm mirror framed in aluminium on all four edges. Installation is fixing the track and hanging the folded pair. 914 x 2134 mm is the standard configuration. Door size, leaf division, track length and finish are adjustable on OEM and ODM orders against an approved drawing. The supplied rail is configured for header or wall mounting above the opening. Tell us your substrate and header detail and we will confirm the fixing arrangement before production. Black is the standard frame and hardware finish for this model. Other finishes are produced to order; confirm the finish reference with us before the drawing is signed off. Complete. Model 201701 includes the mirror leaves, aluminium frame, track, hangers, handle and floor guide. If you need the folding hardware on its own, we also supply bifold barn door hardware kits separately. Send your opening width, opening height, required finish and quantity. We will return a production drawing and a lead time for your project.Mirror Bifold Barn Door with Black Aluminium Frame
Why Buyers Specify a Bifold Instead of a Sliding Barn Door
Half the wall run
Full mirror face
Guided top and bottom
Aluminium not timber
Mirror Bifold Barn Door Specifications

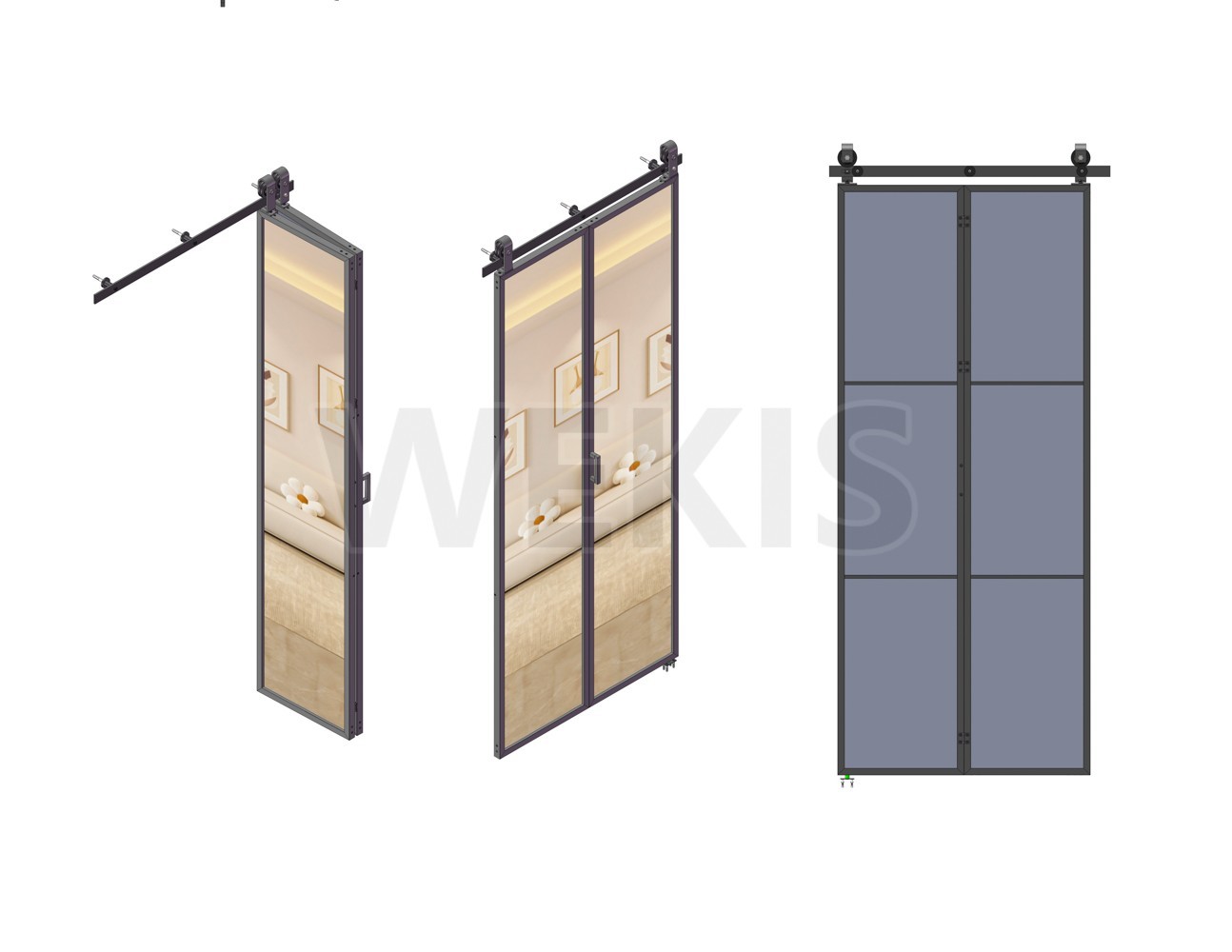

Model 201701 Door type Bifold barn door, two hinged mirror leaves Door size 914 x 2134 mm Leaf width 457 mm per leaf Door thickness 30 mm Track length 1016 mm Mirror thickness 3 mm Frame material Aluminium Colour Black Included Mirror leaves, frame, top track, hangers, pull handle, floor guide Customization OEM and ODM on size, finish and panel division Dimensioned Drawing
Hardware Detail

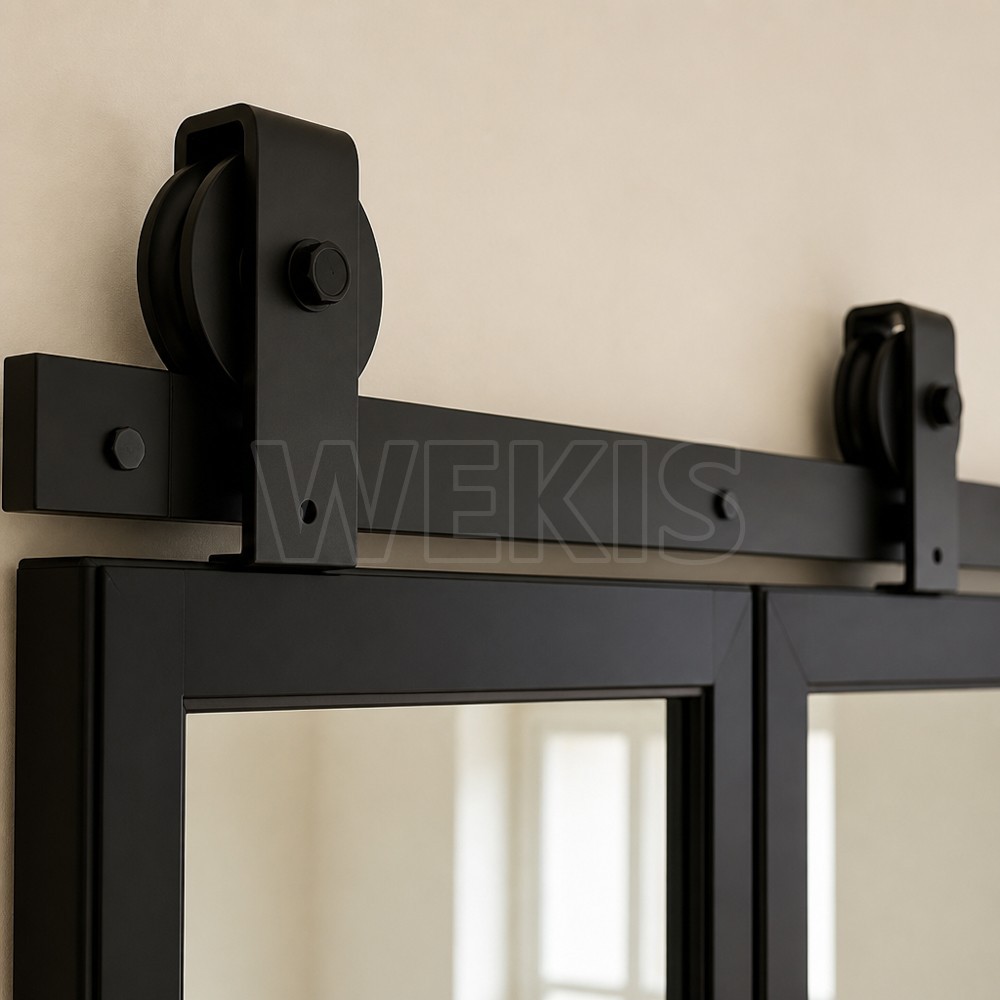

Hanger and top track

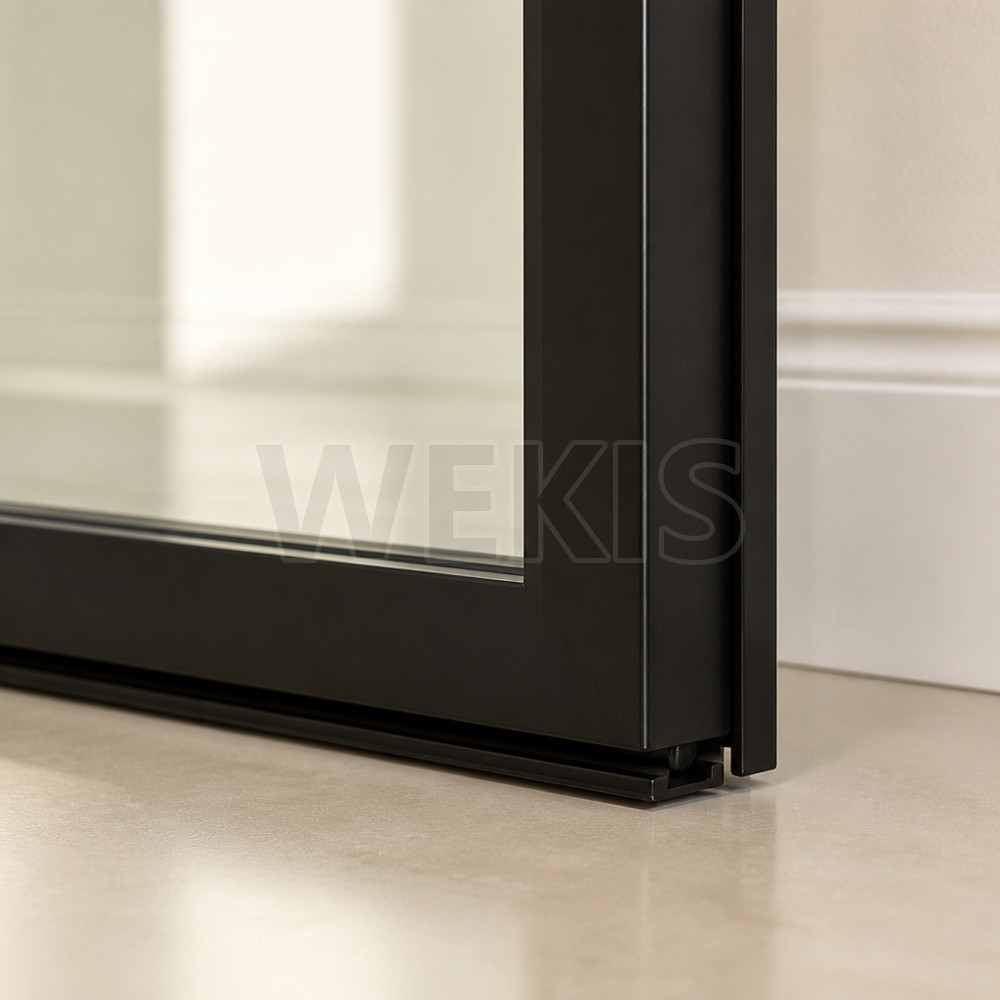

Floor guide

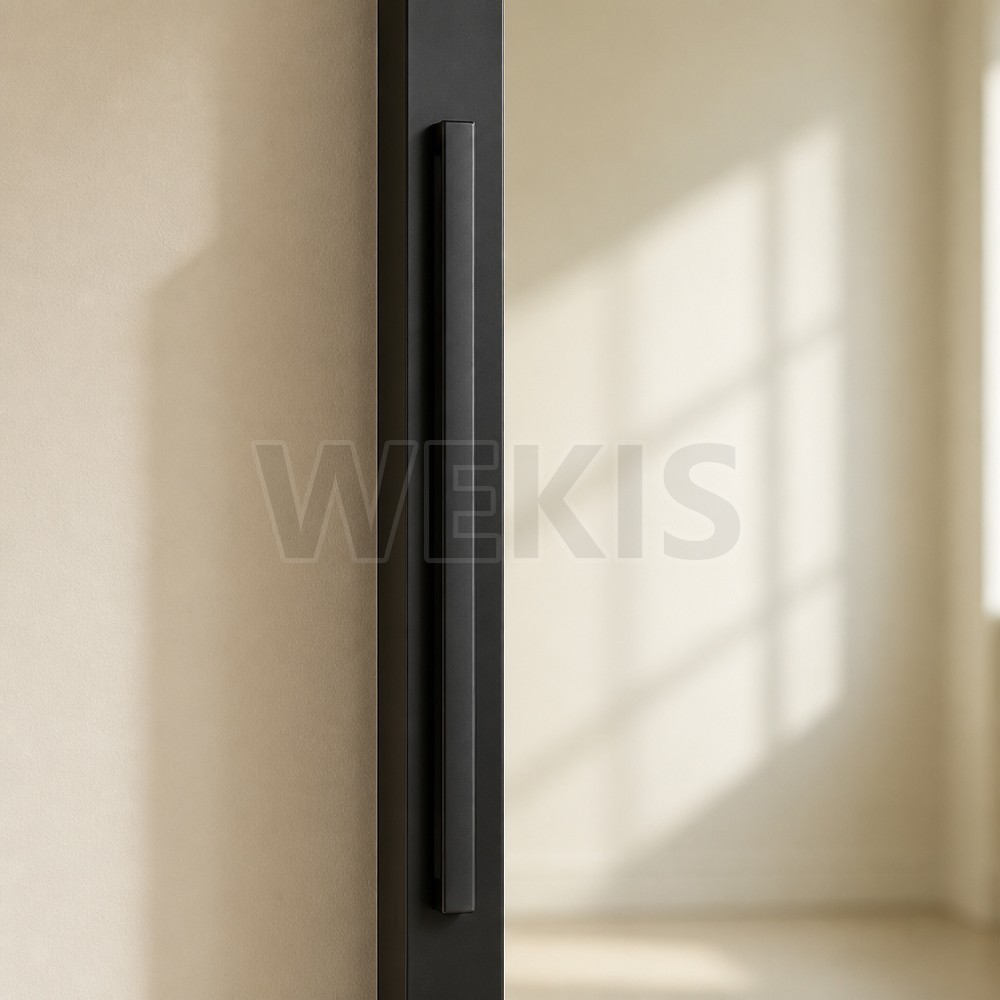

Pull handle

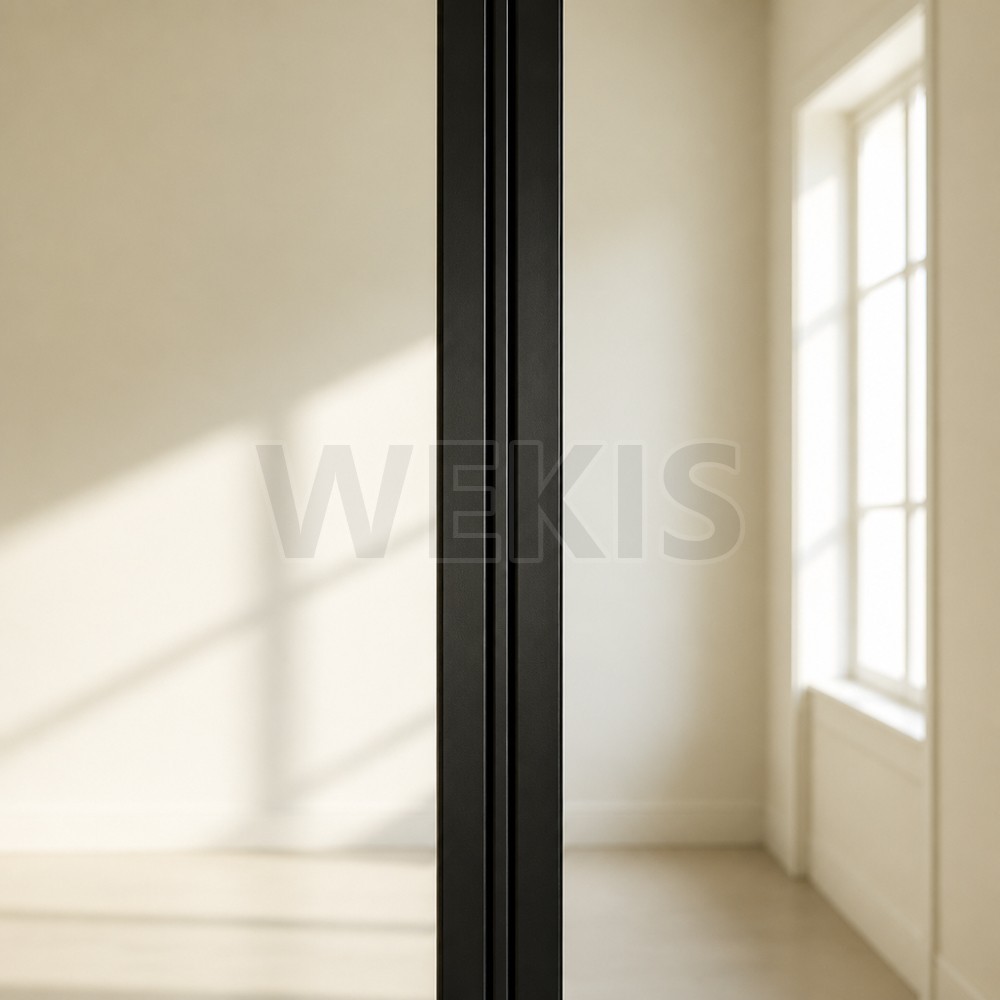

Centre fold stile
Where It Is Installed

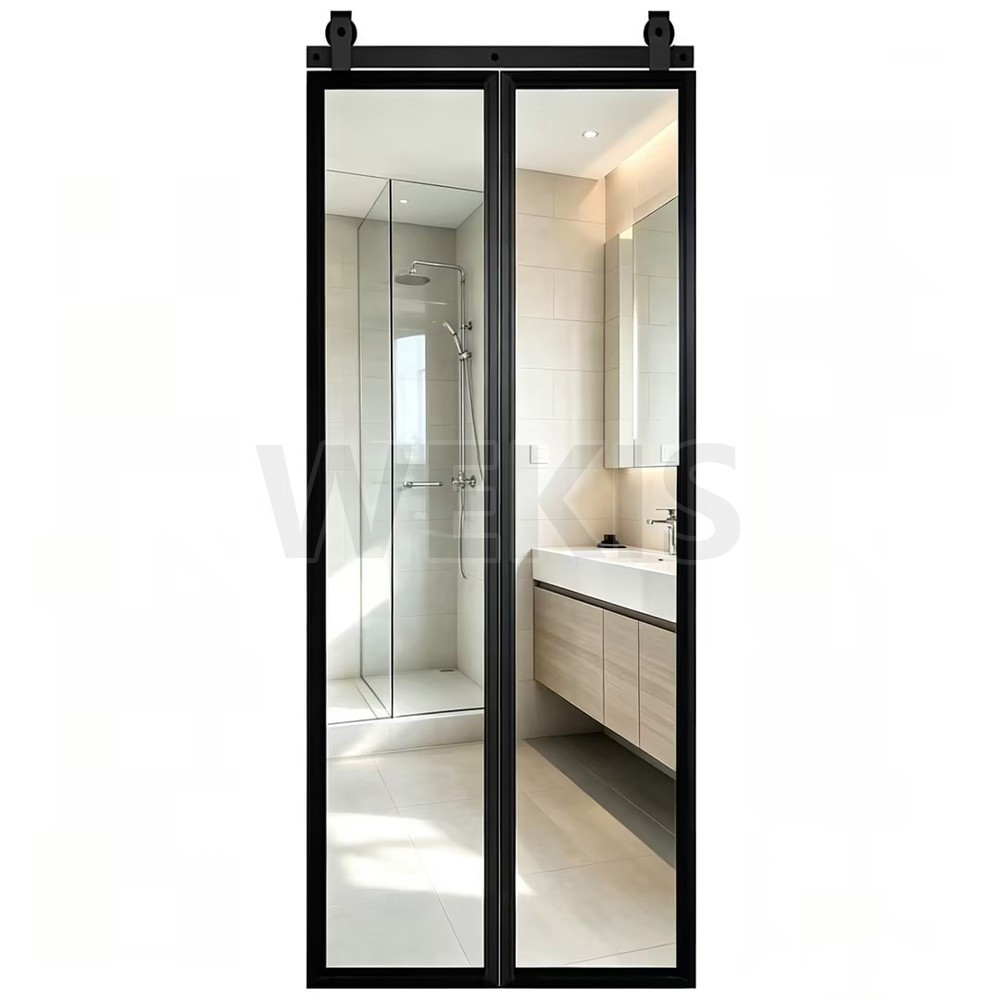

Ensuite and bathroom

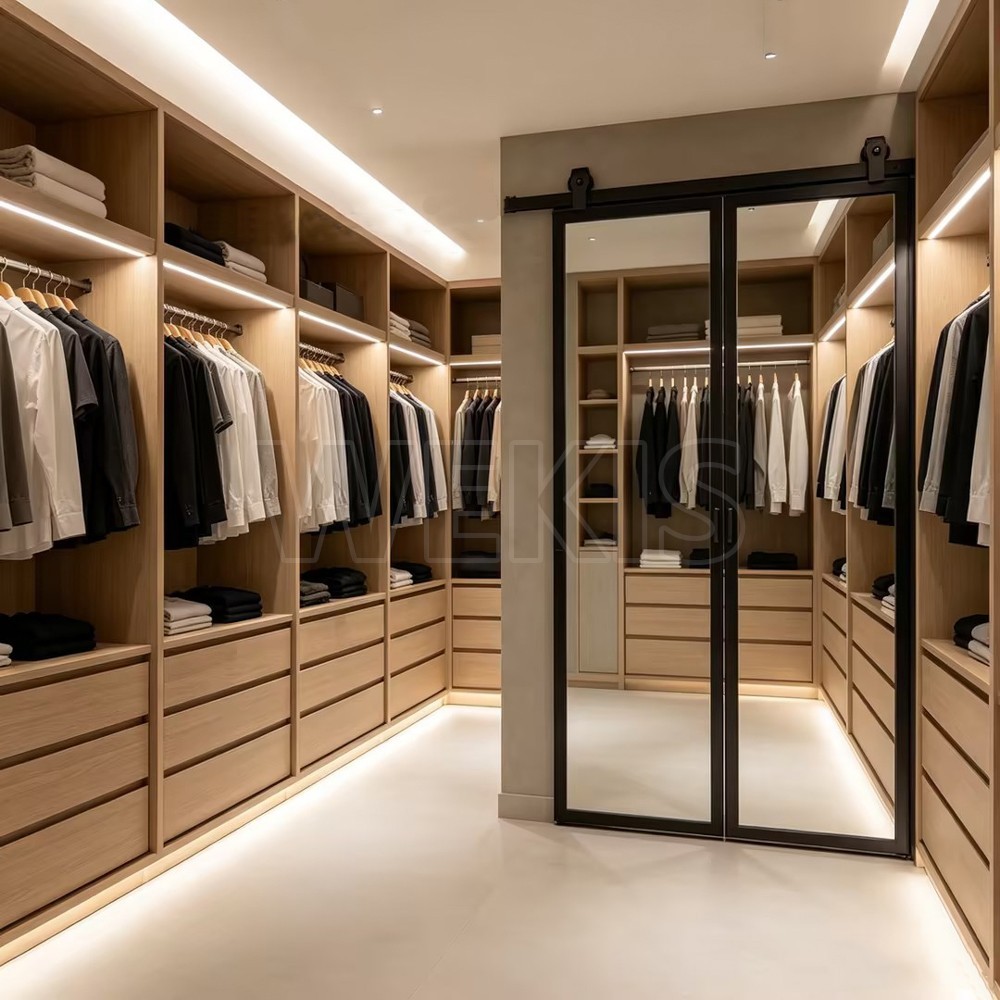

Walk-in wardrobe
Study and small rooms
Common Questions
How much wall space does this door need beside the opening?
Is the mirror already fitted into the frame?
Can the door be made in another size?
Does the track mount to the wall or the ceiling?
Are finishes other than black available?
Is the door supplied complete or as hardware only?
Related Barn Door Hardware
Request a drawing or a sample
