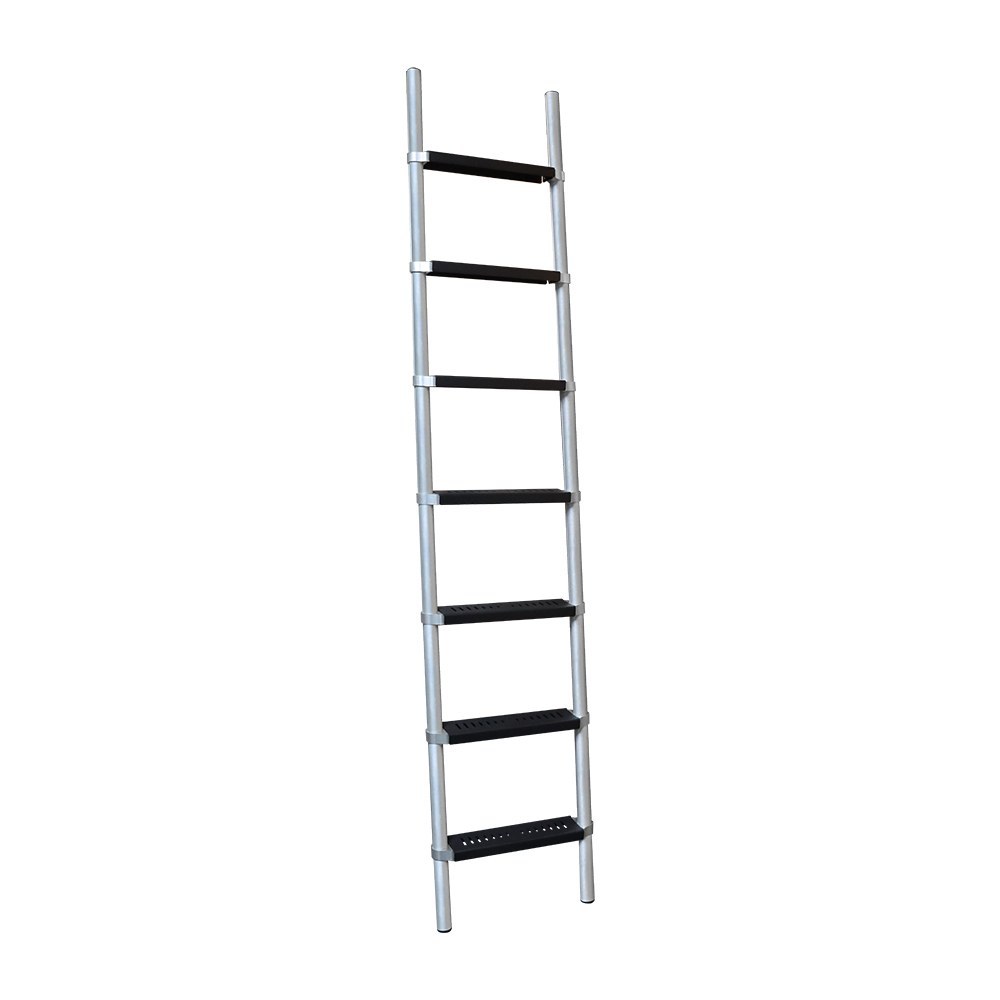

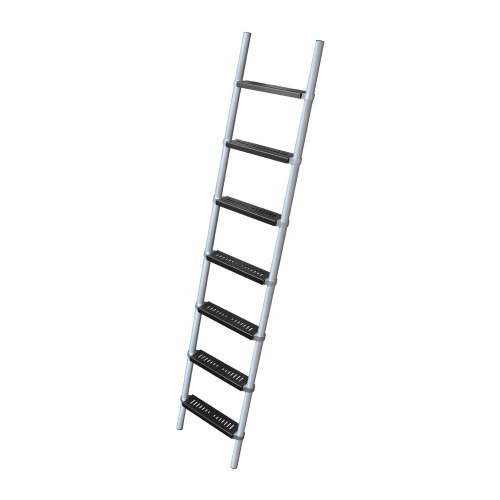

Aluminium Rolling Library Ladder Metal Anti-Slip Treads 2200-3048mm
- Model
- M00259
Item specifics
- Model
- M00259
- Ladder Type
- Rolling Library Ladder
- Stile Section
- 89 x 24 mm
- Stile Material
- Aluminium Tube
- Tread Material
- Black Metal, Slotted Anti-Slip
- Tread Tie Rods
- Black, Every Second Tread
- Heights
- 2200 / 2438 / 2743 / 3048 mm
- Tread Count
- 6 / 7 / 8 / 9 by Height
- Spliced Sizes
- 2743 mm and 3048 mm
- Customization
- OEM / ODM on Height, Finish and Tread
- Place of Origin
- Guangdong, China
Review
Description
Model M00259 is a rolling ladder built from aluminium tube stiles and black metal treads. The tread face is punched with slots that shed dust and give grip underfoot, which is what separates a working ladder from a decorative one. Tread tie rods run behind alternate treads to lock the two stiles together and stop the frame racking under load. Four heights are produced from the same tooling. The two tallest are supplied as spliced stiles, so a 3048 mm ladder still ships inside a manageable crate. Punched black metal treads clear dust and debris instead of holding it, so grip does not degrade in a workshop or store room. Steel tie rods sit behind alternate treads and hold the stiles parallel, which is what keeps the frame from racking under a moving load. 2200, 2438, 2743 and 3048 mm from one tread pitch, so a project can mix heights without mixing appearance. The 2743 and 3048 mm stiles join from sections, cutting the longest crate dimension and the freight cost per unit. Each black metal tread is punched with parallel slots across the full width. Debris falls through rather than collecting on the step, so the grip surface stays usable in a stock room or workshop. Treads land in a cast bracket that wraps the aluminium tube, spreading load into the stile instead of concentrating it at a single fixing point. Reaches the top shelf of a full-height run and rolls aside so the whole wall stays accessible. Gives a fixed climb to a raised floor or storage deck without the floor area a staircase would take. Used where stock sits above head height and the ladder is on show as part of the fit-out. They tie the two stiles together behind alternate treads. Without them a tall ladder can rack sideways when someone shifts weight, which loosens tread fixings over time. Shorter heights take three rods, taller heights take four. A one-piece stile at those heights makes the crate too long for economical shipping. The stiles join from sections at assembly, so the finished ladder is full height but the packed length stays manageable. The tread face is punched with slots rather than left flat, which gives grip and lets dust fall through. This is the reason to choose metal treads over timber in a working environment. This listing covers the ladder itself. Tell us the rail length and mounting you need and we will quote the matching rolling hardware with it. Yes. The four listed heights are standard. Other heights, finishes and tread types are produced to order against a drawing you approve first. Model M00081 uses oak stiles and oak treads with a tube handrail, suited to a library or retail interior. M00259 uses aluminium stiles and slotted metal treads for working areas where grip matters more than appearance. Send the floor-to-rail height, the shelving run you need to cover, the finish and the quantity. We will return a production drawing and a lead time for your project.Aluminium Rolling Library Ladder with Black Anti-Slip Metal Treads
Why Buyers Specify This Ladder
Slotted metal treads
Tread tie rods
Four heights
Spliced tall sizes
Specifications
Model M00259 Ladder type Rolling library ladder, straight stile Stile section 89 x 24 mm Stile material Aluminium tube Tread material Black metal, slotted anti-slip face Cross bar One round bar Tread tie rods Black, fitted behind every second tread Heights 2200 / 2438 / 2743 / 3048 mm Construction 2743 and 3048 mm supplied as spliced stiles Customization OEM and ODM on height, finish and tread type Available Sizes
Height
Treads
Tie rods
Build
2200 mm 6 treads 3 tie rods One-piece stile 2438 mm 7 treads 4 tie rods One-piece stile 2743 mm 8 treads 4 tie rods Spliced stile 3048 mm 9 treads 4 tie rods Spliced stile Construction Detail

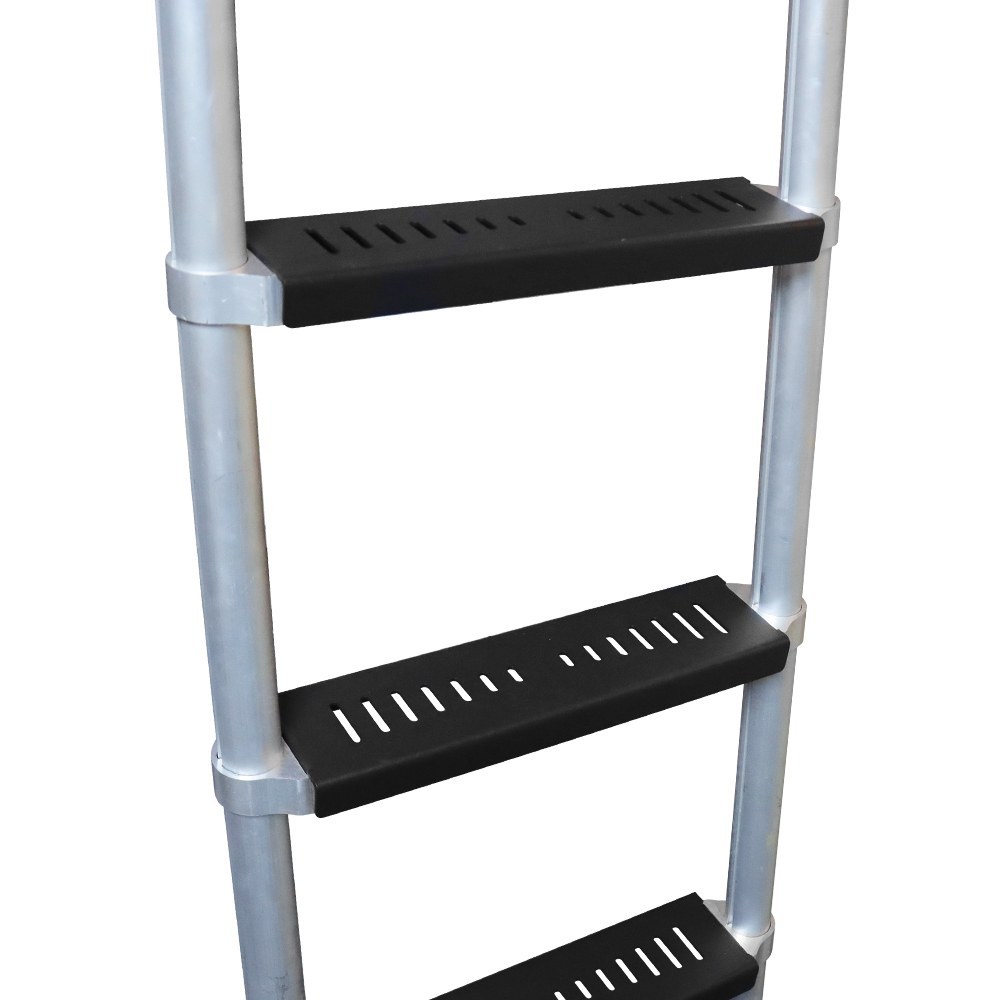

Anti-slip tread face

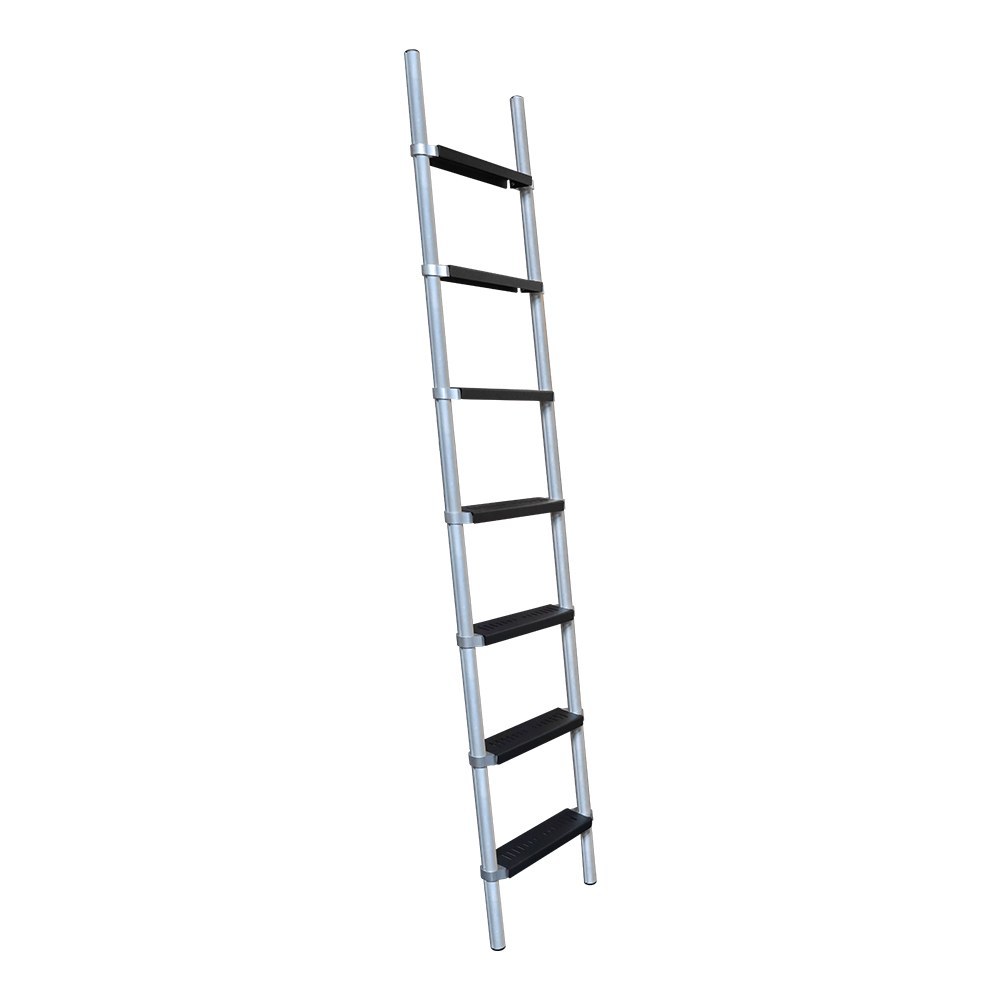

Tread to stile joint
Where These Ladders Are Used

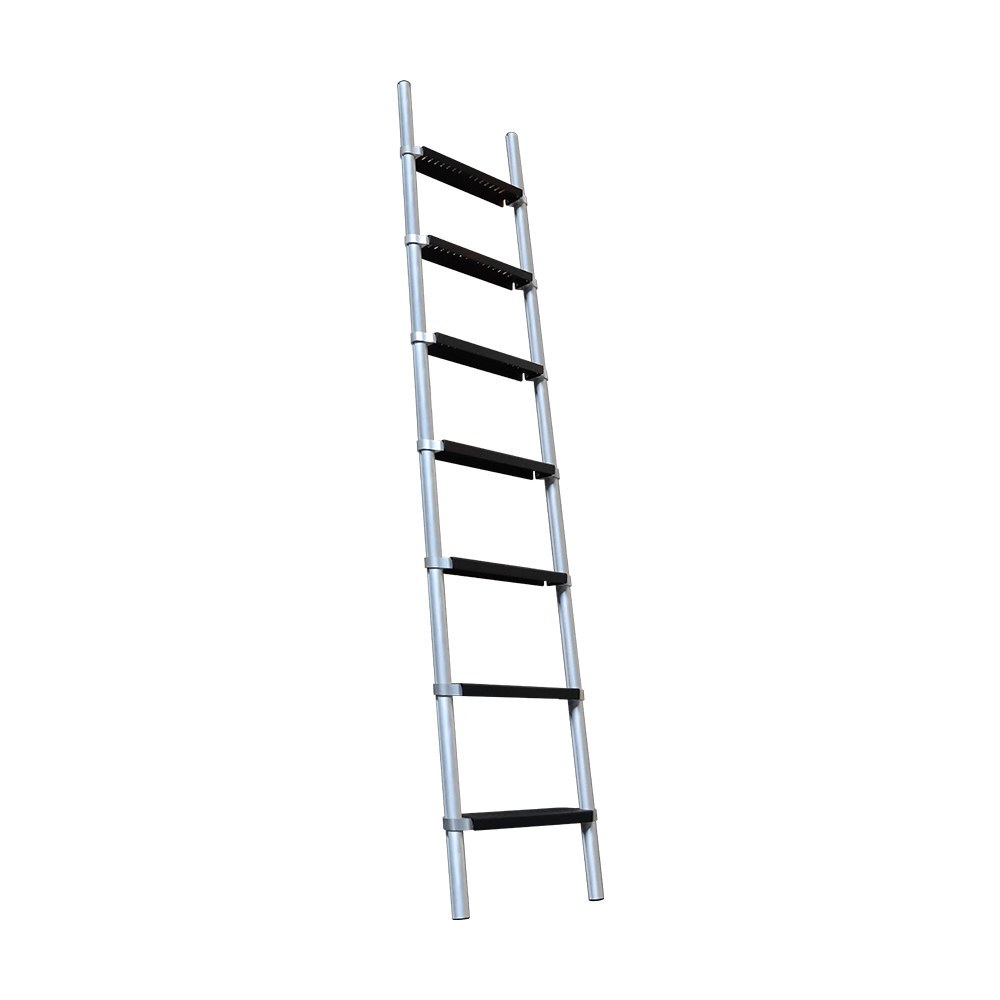

Libraries and shelving

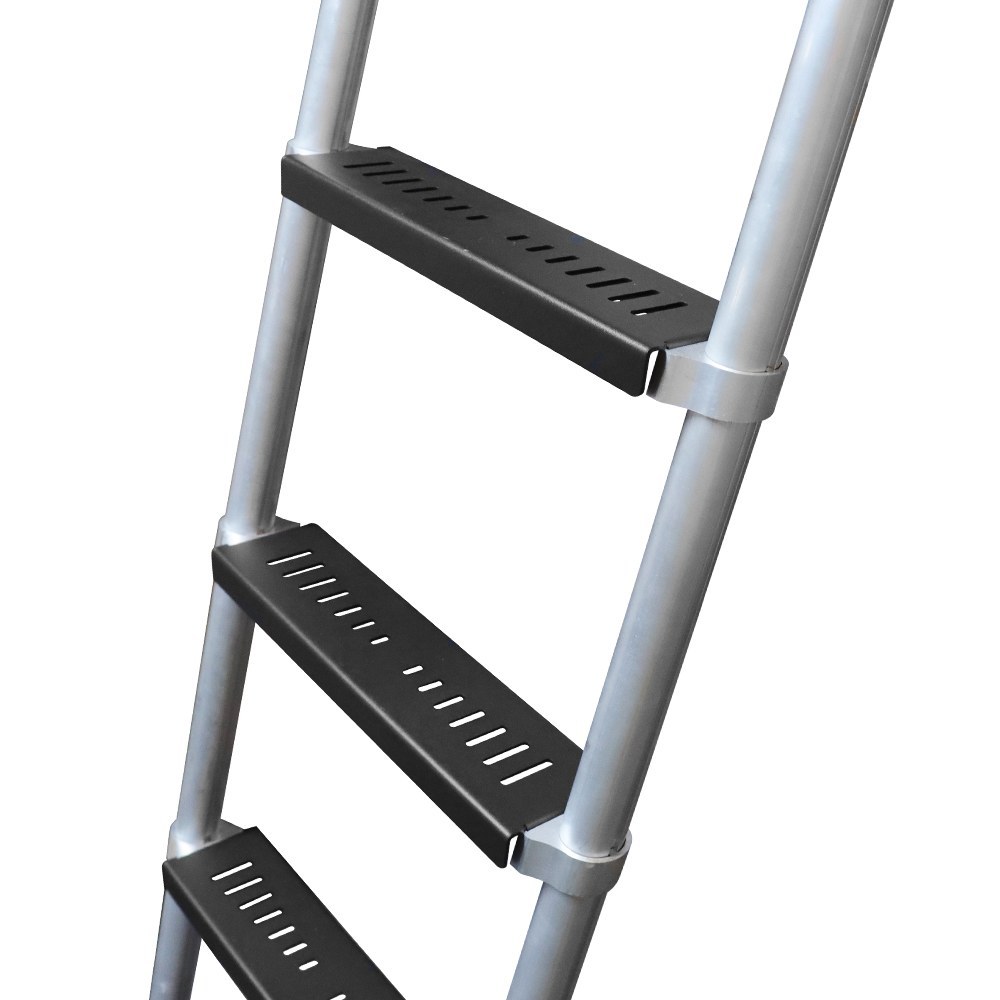

Lofts and mezzanines
Retail, wine stores and kitchens
Common Questions
What are the tread tie rods for?
Why are the 2743 and 3048 mm versions spliced?
Are the treads slippery?
Is the hardware or rail included?
Can the height be changed?
What is the difference from the oak version?
