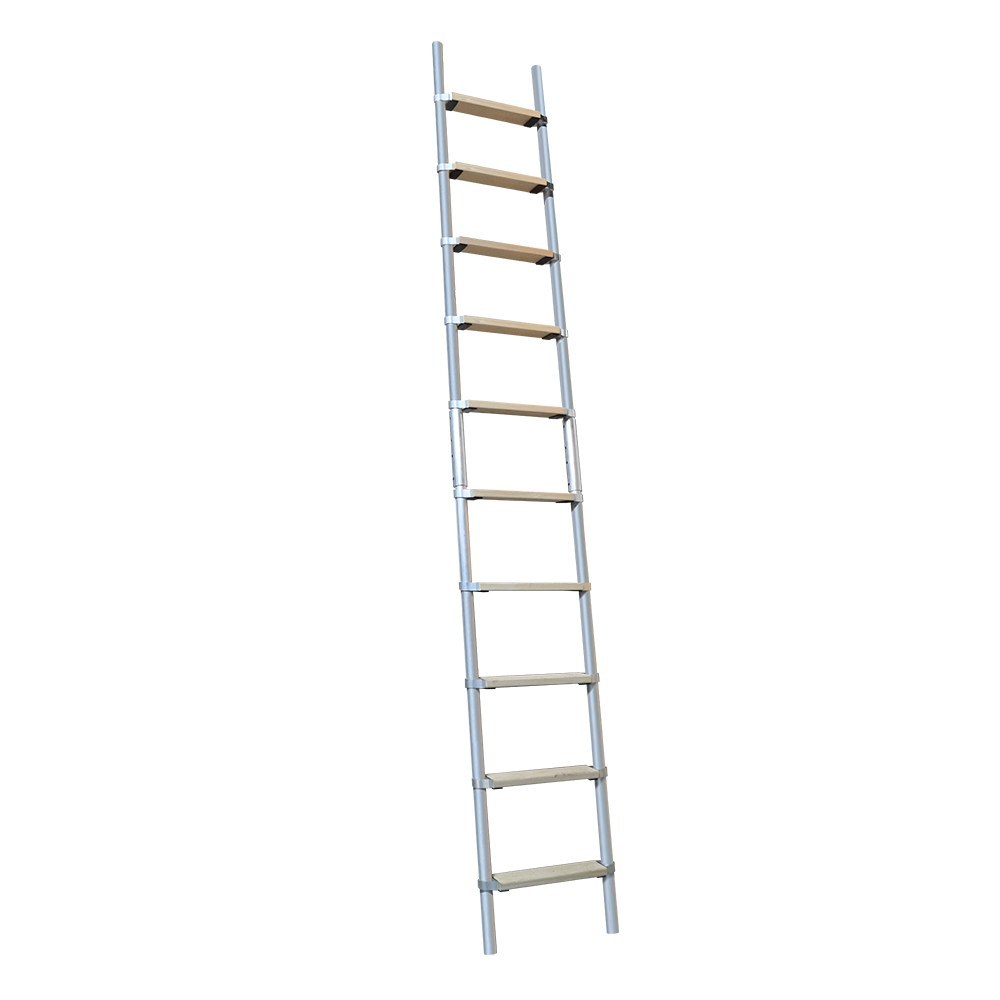

Aluminium Rolling Ladder with Solid Oak Treads Spliced Stile
- Model
- 2210
Item specifics
- Model
- 2210
- Ladder Type
- Rolling Ladder, Spliced Aluminium Stile
- Stile Material
- Aluminium Tube
- Tread Material
- Solid Oak
- Reference Treads
- 7 Oak Treads
- Reference Rail
- 1000 mm
- Construction
- Spliced Stile Sections
- Tread Count
- Varies with Specified Height
- Customization
- OEM / ODM on Height, Rail and Finish
- Place of Origin
- Guangdong, China
Review
Description
Model 2210 pairs aluminium tube stiles with solid oak treads. It is the middle option between a full timber ladder and an all-metal one: the aluminium frame carries the load and resists knocks, while the oak tread face keeps the warm look wanted in a kitchen, wine store or open shelving run. The reference configuration is seven oak treads on a one metre rail, supplied as a spliced ladder. Tread count changes with the height you specify. Solid oak treads give a warmer surface than metal underfoot and match timber shelving without needing a separate finish. The stiles take the structural load, so the timber is doing the job it is good at rather than carrying the whole frame. Stiles join from sections, which shortens the crate and lets a tall ladder move through a stairwell during installation. Seven treads on a one metre rail is the reference build. Tread count and rail length are recalculated for your opening. Each oak tread lands in a cast collar that wraps the aluminium tube. The collar spreads the load around the stile rather than relying on a fixing driven into the tube wall. Stile sections join with an internal sleeve and fixings through the tube. The joint sits between treads so it is out of the load path of any single step. Reaches the top shelf of a full-height run and rolls aside so the whole wall stays accessible. Gives a fixed climb to a raised floor or storage deck without the floor area a staircase would take. Used where stock sits above head height and the ladder is on show as part of the fit-out. An all-timber ladder looks right but dents and moves with humidity. An all-metal ladder is hard-wearing but cold in a domestic room. This model puts the structure in aluminium and the contact surface in oak. The costed reference build is seven oak treads on a one metre rail. Tread count follows the finished height, so tell us your floor-to-rail dimension and we will confirm the number on the drawing. The stiles are shipped in sections and joined at assembly with an internal sleeve. It keeps the packed length short and makes a tall ladder easier to carry into the room. The reference configuration includes a one metre rail. Longer runs are quoted by length, so send the wall or shelf run you need to cover. Yes. Send a sample or a finish reference and we will match it before bulk production. M00259, the aluminium ladder with slotted metal treads. Oak treads are the right choice for display and living areas, not for a space where the treads collect swarf and dust. Send the floor-to-rail height, the shelving run you need to cover, the finish and the quantity. We will return a production drawing and a lead time for your project.Aluminium Rolling Ladder with Solid Oak Treads
Why Buyers Specify This Ladder
Oak tread face
Aluminium frame
Spliced construction
Built to height
Specifications
Model 2210 Ladder type Rolling ladder, spliced aluminium stile Stile material Aluminium tube Tread material Solid oak Reference treads 7 oak treads Reference rail 1000 mm Construction Spliced stile sections Tread count Varies with specified height Customization OEM and ODM on height, rail length and finish Construction Detail

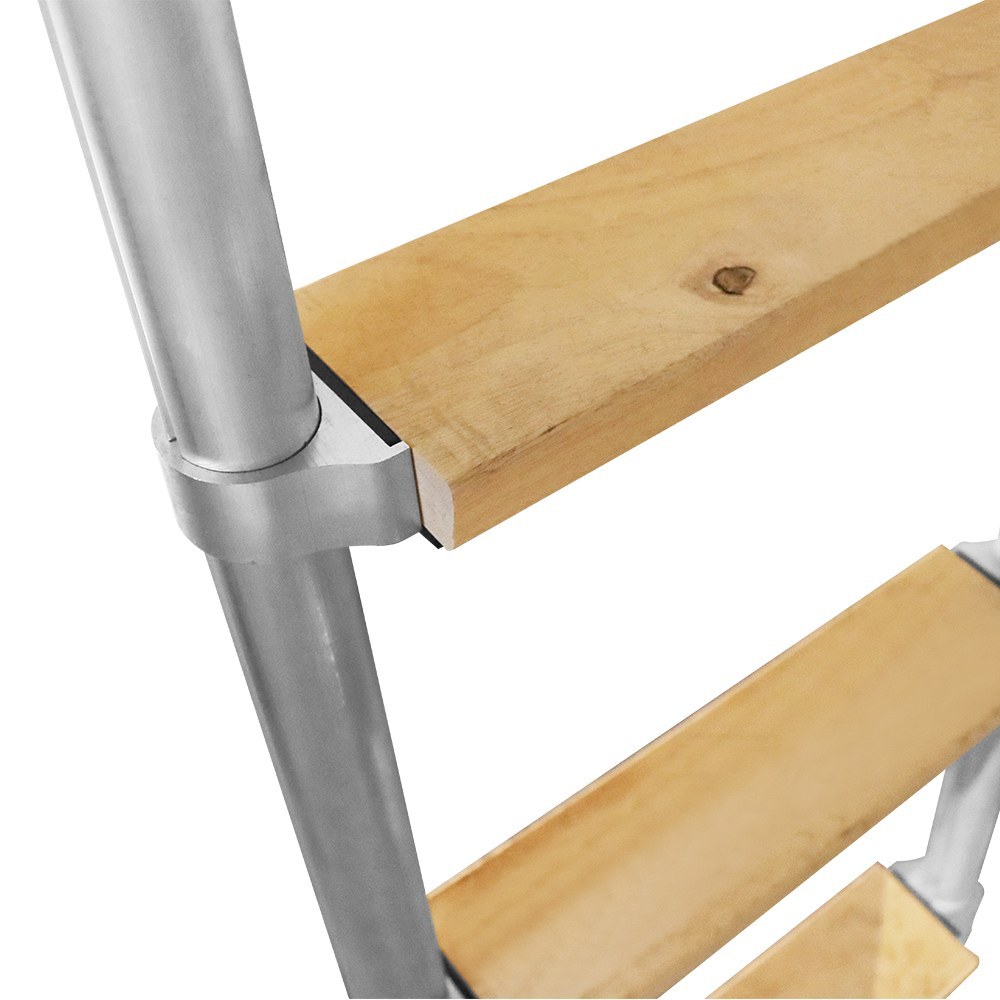

Oak tread on aluminium stile

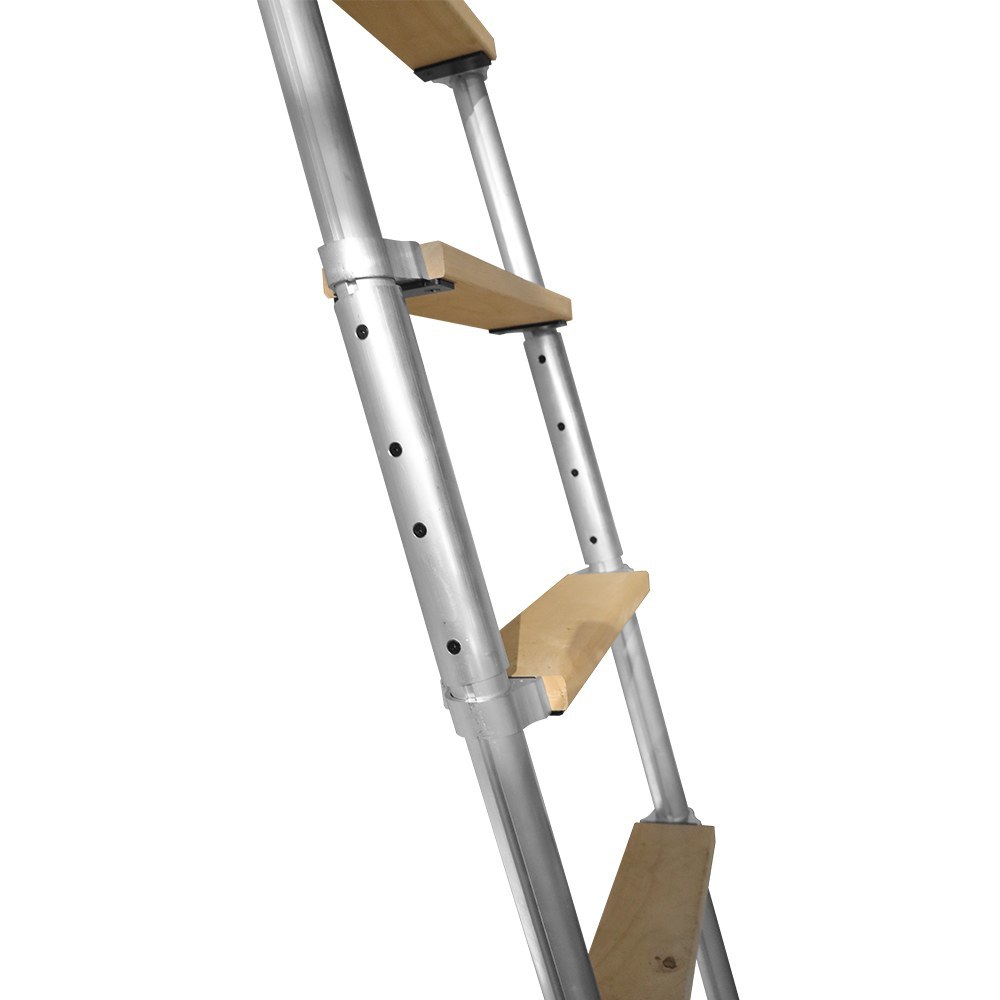

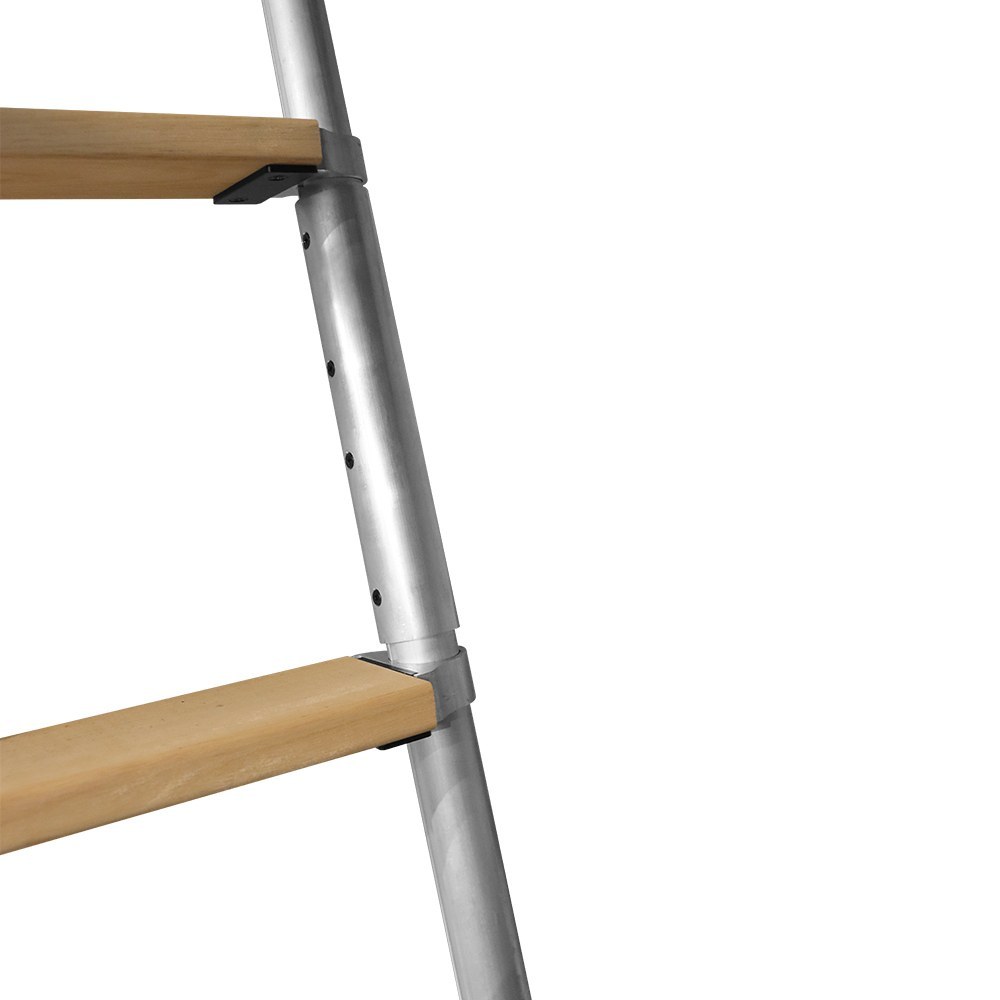

Spliced stile
Where These Ladders Are Used
Libraries and shelving
Lofts and mezzanines
Retail, wine stores and kitchens
Common Questions
Why combine aluminium with oak?
How many treads will my ladder have?
What does spliced mean here?
Is the rail included?
Can the oak be finished to match our joinery?
Which model should I pick for a workshop?
