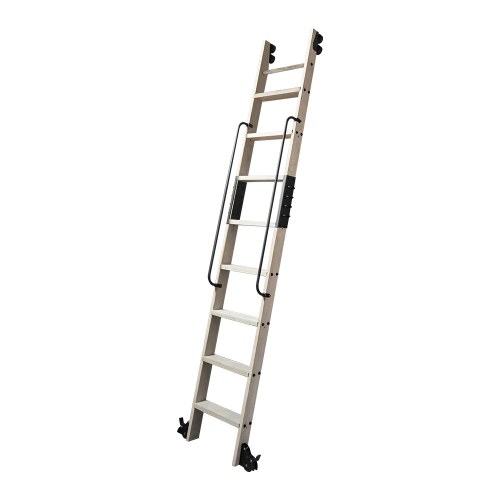

Oak Rolling Library Ladder with Black Tube Handrail 2200-2743mm
- Model
- M00081
Item specifics
- Model
- M00081
- Ladder Type
- Rolling Library Ladder with Handrail
- Stile Section
- 89 x 25 mm, Large Radius Edge
- Stile Material
- Oak
- Tread Material
- Oak, Pre-Embedded Nut Fixing
- Handrail
- Black Tube 16 mm x 1.0 mm
- Cross Bar
- One Oak Round Bar
- Heights
- 2200 / 2438 / 2743 mm
- Tread Count
- 6 / 7 / 8 by Height
- Spliced Sizes
- 2743 mm with Connectors
- Finish
- Natural Oak
- Customization
- OEM / ODM on Height, Finish and Handrail
- Place of Origin
- Guangdong, China
Review
Description
Model M00081 is an oak rolling ladder made for rooms where the ladder is seen as much as it is used. The stiles are 89 x 25 mm oak with a large radius worked along the edge, the treads are oak with the same rounded long edge, and a black 16 mm tube handrail runs up one side. Treads are fitted on pre-embedded nuts rather than screwed straight into end grain, which is the detail that decides whether a timber ladder stays tight after a few years of use. A 16 x 1.0 mm black tube handrail gives a hand hold on the climb, which matters on the taller sizes and in public-facing rooms. Stiles and treads carry a large radius on the long edge, so there is no sharp arris where hands and legs make contact. Treads seat on pre-embedded nuts instead of screws driven into end grain, so the joint does not loosen as the timber moves. Oak stiles and oak treads in natural finish, chosen where the ladder has to match joinery rather than disappear into a workshop. The black tube handrail is carried on brackets bolted through the stile. It runs the working length of the ladder rather than stopping short at the top tread. Twin roller hangers mount to the head of each stile so the ladder rolls along the rail and can be lifted off when the room needs clearing. Reaches the top shelf of a full-height run and rolls aside so the whole wall stays accessible. Gives a fixed climb to a raised floor or storage deck without the floor area a staircase would take. Used where stock sits above head height and the ladder is on show as part of the fit-out. Screws driven into the end grain of a timber stile lose grip as the wood moves with humidity. A pre-embedded nut gives the fixing a metal thread to pull against, so the tread stays tight for the life of the ladder. The standard build carries one 16 x 1.0 mm black tube handrail. If your project needs a rail on both sides, say so at drawing stage and we will quote it. It is supplied spliced with connectors rather than as a one-piece stile. This keeps the crate length down for shipping. The assembled ladder is full height. Natural oak as standard. Stain and lacquer finishes are produced to order, and we will match a sample if you send one. This listing covers the ladder with its handrail. Tell us the rail length and mounting substrate and we will quote the matching rolling hardware alongside it. M00259 uses aluminium stiles and slotted metal treads for working areas. M00081 is the timber option for libraries, retail interiors and living spaces where the ladder is part of the joinery. Send the floor-to-rail height, the shelving run you need to cover, the finish and the quantity. We will return a production drawing and a lead time for your project.Oak Rolling Library Ladder with Black Tube Handrail
Why Buyers Specify This Ladder
Tube handrail
Radiused edges
Embedded nut fixing
Solid oak
Specifications
Model M00081 Ladder type Rolling library ladder with handrail Stile section 89 x 25 mm, large radius edge Stile material Oak Tread material Oak, pre-embedded nut fixing, radiused long edge Handrail Black tube, 16 mm diameter x 1.0 mm wall Cross bar One oak round bar Tread tie rods Black, fitted behind every second tread Heights 2200 / 2438 / 2743 mm Construction 2743 mm supplied spliced with connectors Finish Natural oak Customization OEM and ODM on height, finish and handrail Available Sizes
Height
Treads
Tie rods
Build
2200 mm 6 treads 3 tie rods One-piece stile 2438 mm 7 treads 4 tie rods One-piece stile 2743 mm 8 treads 4 tie rods Spliced with connectors Construction Detail

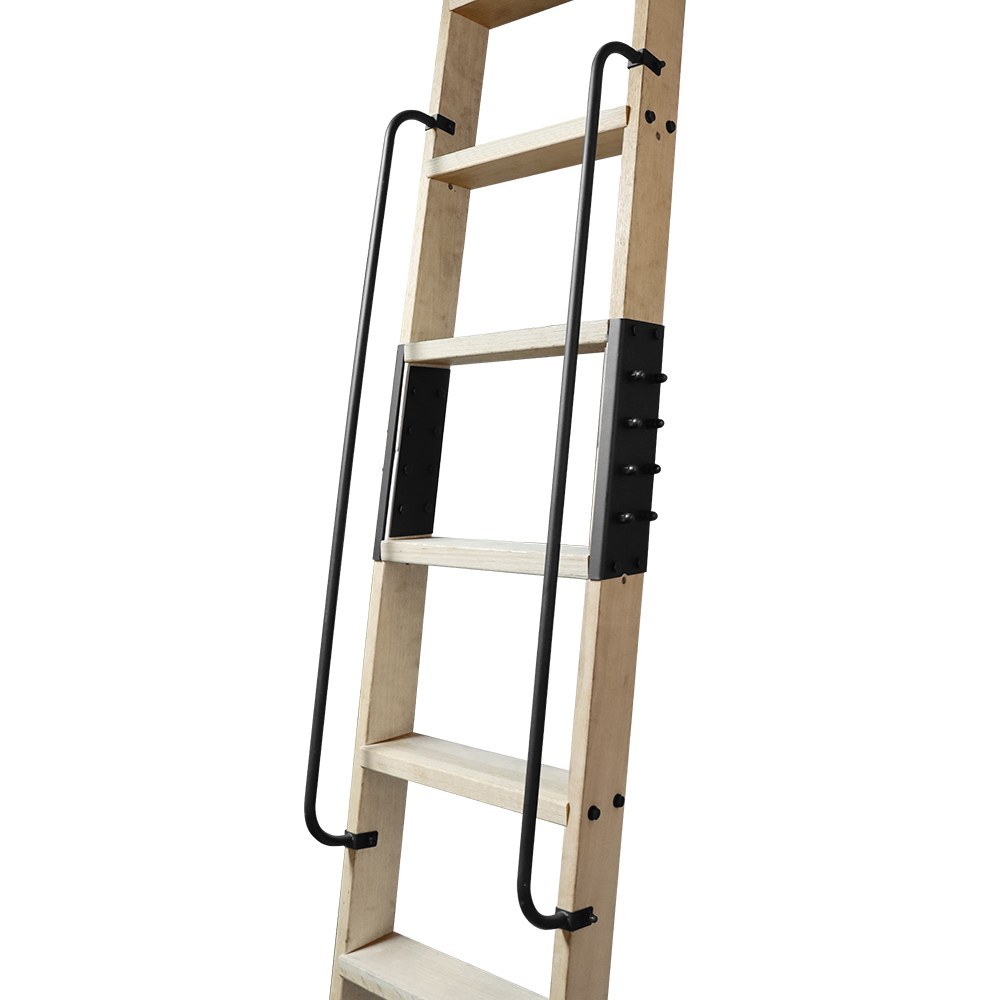

Handrail and bracket

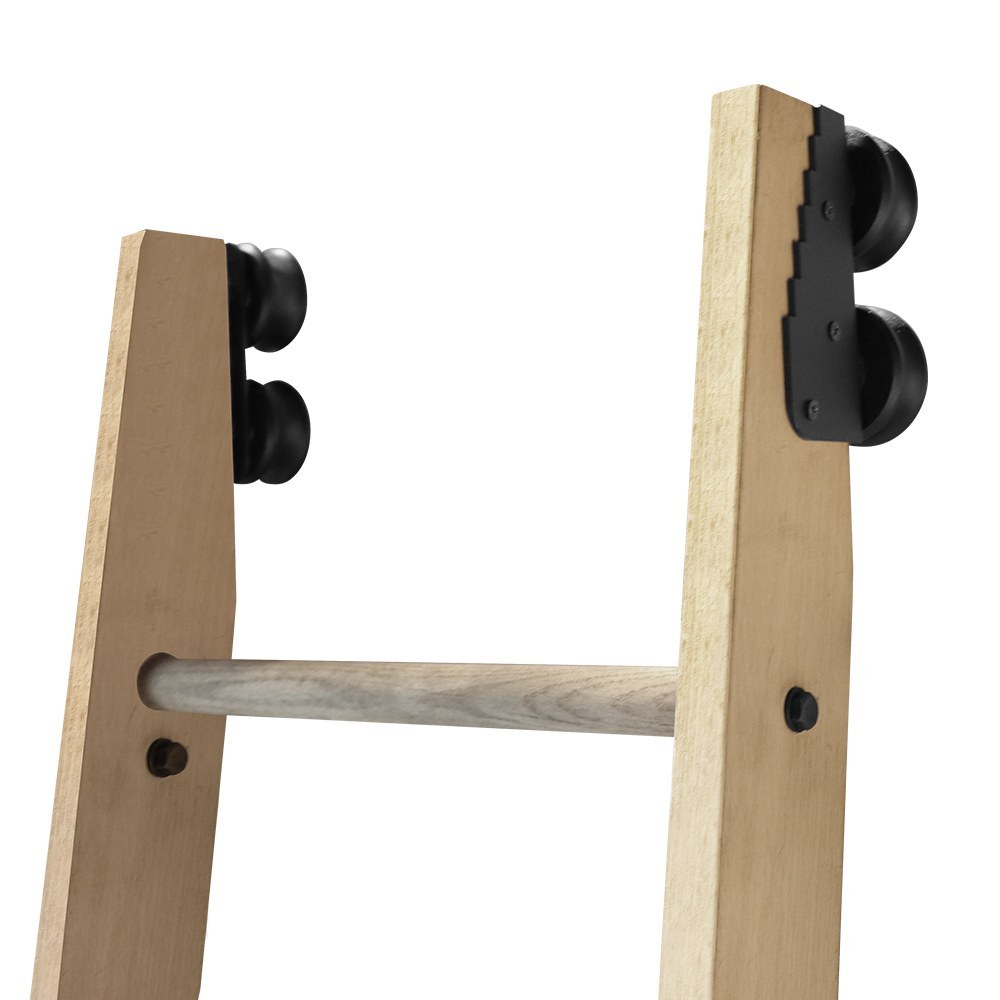

Top roller hardware
Where These Ladders Are Used

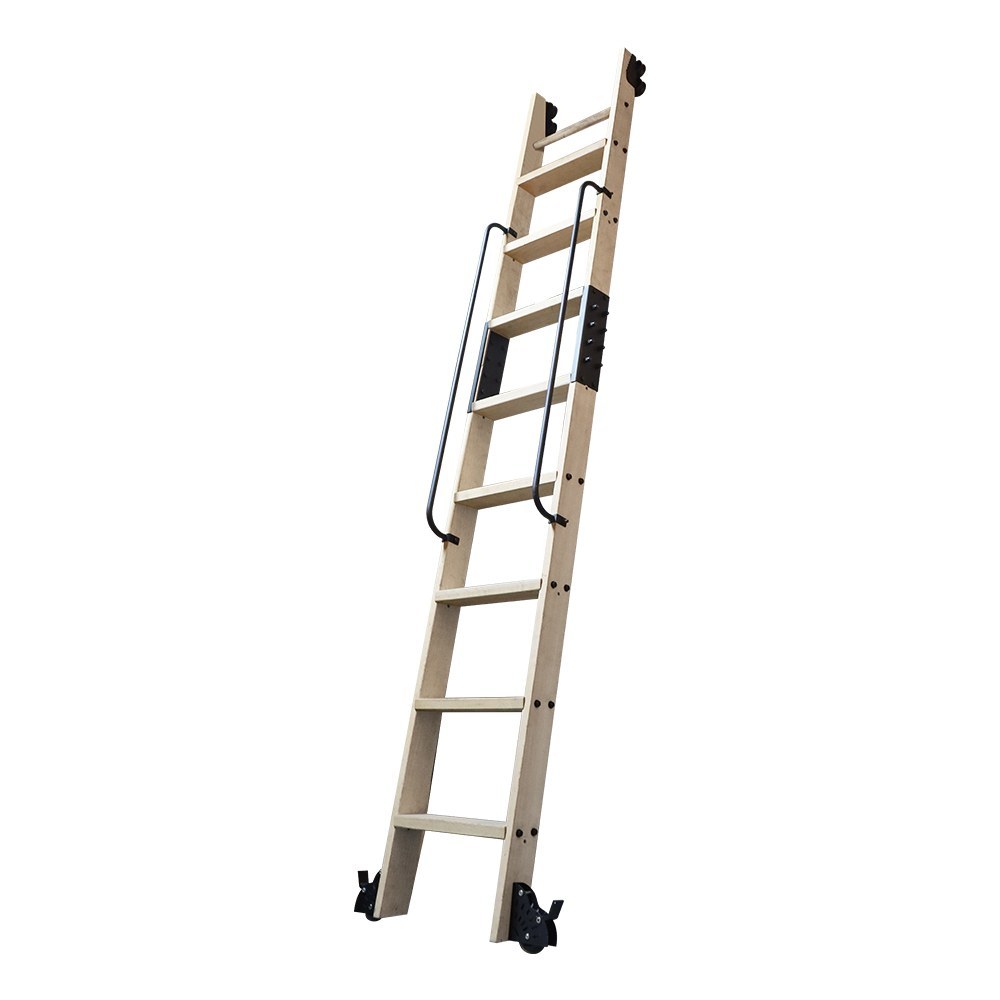

Libraries and shelving

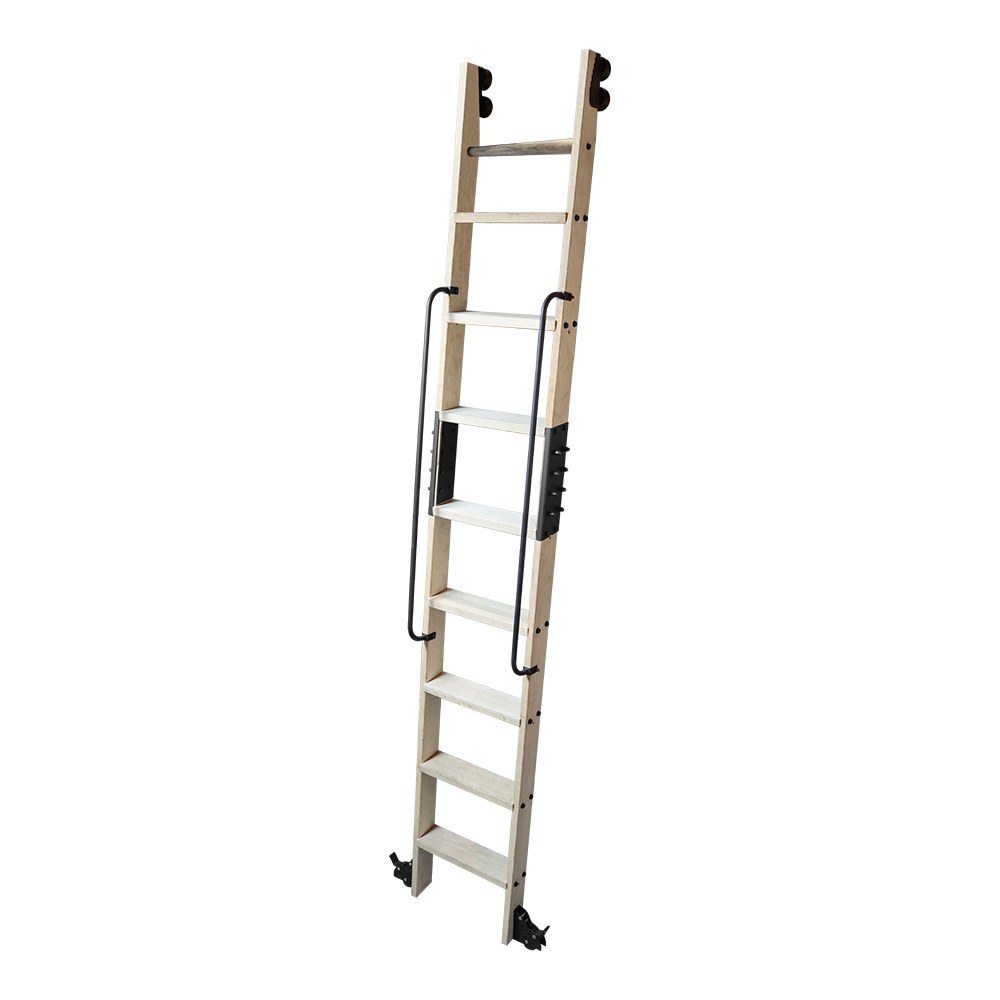

Lofts and mezzanines

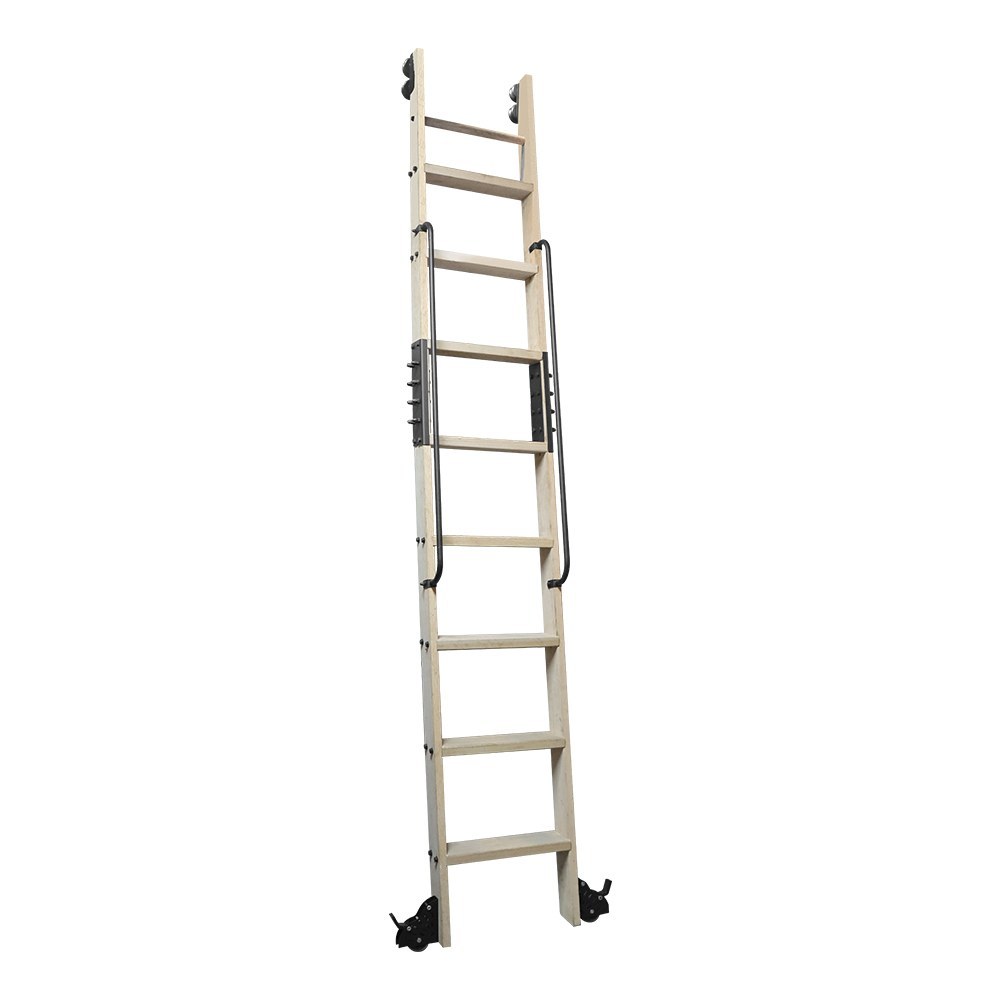

Retail, wine stores and kitchens
Common Questions
Why fit treads on embedded nuts?
Is the handrail on both sides?
How is the 2743 mm version different?
What finish does the oak come in?
Does this include the rail and rolling hardware?
How does it compare with the aluminium model?
